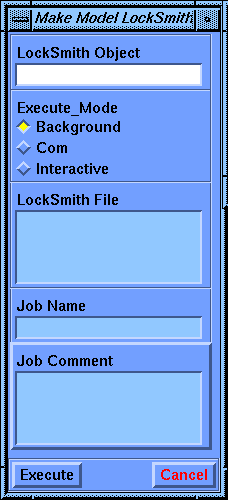

Make Model LockSmith Parameter Block

LockSmith Object

identifier

The LockSmith Object is the name of the LockSmith activity-weighted consensus map that is currently under development by the model. This parameter also is a unique identifier for the model. It is specified in the LockSmith Open command.

Execute_Mode

enumerated choices: {Background|Com|Interactive}

The Execute_Mode parameter controls the submission of the Hint job. For non-immediate run modes an input file (.inp) is written that can be read by the background Hint program. The Execute_Mode options are:

Background automatically spawns a background job to execute the calculation. When the job is completed a message is printed in the information area.

Com writes the background input file but does not initiate the calculation. You may submit the job manually at a later time.

Interactive performs the calculation in immediate mode. Note that this locks out InsightII for other functions until the calculation is complete. The calculation time for Hint grids and tables varies from a few seconds to several hours depending on complexity.

LockSmith File

long text

The LockSmith File is the name of the disk file to be written with the resulting LockSmith model if Background or Com are chosen for Execution_Mode. Any valid unix filename may be used.

Job Name

short text

The Job Name parameter is a name which is used for the root of files generated by the Hint calculation (with the exception of the LockSmith File which is explicitly named).

Job Comment

long text

The Job Comment is used to denote any special conditions or remarks about the current calculation. It is stored in the Background (.inp) file and in the resulting grid file and may be useful for future reference.
