View Partition SMILES Dialog

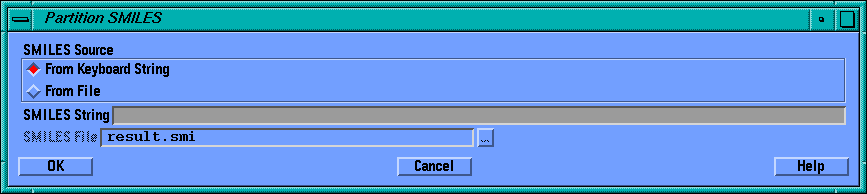

Partition SMILES Dialog

SMILES Source: radio button set: {From Keyboard String|From File}; The SMILES Source parameter specifies where the input SMILES string will be found. The choices are:; From Keyboard String means that the SMILES string will be read directly from keyboard entry.; From File means that the SMILES string(s) will be read from a specified disk file.
SMILES String: field; The SMILES_String parameter is the input for keyboard-entered strings. The SMILES string is a compact representation of atom-types and bond connectivity developed by D. Weininger. See the Theory chapter for more information.
SMILES File: field and push button; The SMILES File parameter specifies the file name of an input disk file containing one or more SMILES strings to be retrieved. Press the push button to obtain a file list dialog.
